KTS-110

  • Model No.: KTS-110
  • Replacement cutting blade: KTS-110-BS
  • Capacity: 6mm-35mm O.D. (1" I.D.)
  • Body material: die-cast aluminum alloy
  • Blade material: AUS8
  • Packing:
        KTS-110: 20 PCS/CTN/12.5/15 KGS/1.41' (COLOR BOX)
        KTS-110-BS: 200 PCS/CTN/6/7 KGS/0.25'
  • This cutter is designed for quick, clean and easy cutting of most plastic pipe up to 35mm outside diameter. The design of the ratchet mechanism on the cutting blade gives a smooth cutting action with minimal effort.

  • KTS-110-BS
  • KTS-110
  • point Ąż cut!
    back to top

    KTS-120

  • Model No.: KTS-120
  • Replacement cutting blade: KTS-120-BS
  • Capacity: 6mm-35mm O.D. (1" I.D.)
  • Patented product
  • Body material: die-cast aluminum alloy
  • Blade material: AUS8
  • Packing:
        KTS-120: 20 PCS/CTN/12.5/15 KGS/1.41' (COLOR BOX)
        KTS-120-BS: 200 PCS/CTN/6/7 KGS/0.25'
  • This cutter is designed for quick, clean and easy cutting of most plastic pipe up to 35mm outside diameter. The design of theratchet mechanism on the cutting blade gives a smooth cutting action with minimal effort. The cutting blade is easily replaced or cleaned without opening the body of the cutter.

  • KTS-120-BS
  • KTS-120
  • point Ąż cut!
    back to top

    KTS-26/42N

  • Model No.: KTS-26/42N
  • Replacement cutting blade: KTS-26/42N-BS
  • Capacity: 6mm-42mm O.D. (1 1/4" I.D.)
  • Patented product
  • Body material: die-cast aluminum alloy
  • Blade material: SK5
  • Packing:
        KTS-26/42N: 20 PCS/CTN/15/19.5 KGS/2.22' (COLOR BOX)
        KTS-26/42N-BS: 200 PCS/CTN/10.5/11.5 KGS/0.6'
  • This cutter is designed to cut plastic pipe up to 42mm outside diameter. To speed up the operation with smaller diameter pipe, the cutting blade can be pre-set for cutting diameters between 6mm and 26mm outside diameter. The curved design of the cutting blade gives a smooth cutting action with minimal effort.

  • KTS-26/42N-BS
  • KTS-26/42N
  • point Ąż cut!
    back to top

    KTS-35/50, KTS-35/50R

  • Model No.: KTS-35/50
  • Replacement cutting blade: KTS-35/50-BS
  • Capacity: 6mm-50mm O.D. (1 1/2" I.D.)
  • Patented product
  • Body material: die-cast aluminum alloy
  • Blade material: SK5
  • Packing:
        KTS-35/50: 6 PCS/BOX; 36 PCS/CTN/22/24 KGS/2.1' (BLISTER CARD)
        KTS-35/50-BS: 200 PCS/CTN/25/26 KGS/1'
  • This KTS-35/50 is designed for cutting most plastic pipe up to 50mm outside diameter. The push-button enables the selection of cutting positions suitable for pipes of 6mm to 35mm outside diameter. This design allows rapid cutting of smaller diameter pipes. The cutting blade is specifically designed for "Point Cut".

  • KTS-35/50
  • KTS-35/50R: handle with rubber grip
  • KTS-35/50-BS

  • point Ąż cut!
    back to top

    KTS-63N, KTS-63NR

  • Model No.: KTS-63N
  • Replacement cutting blade: KTS-63N-BS
  • Capacity: 6mm-63mm O.D. (2" I.D.)
  • Body material: die-cast aluminum alloy
  • Blade material: SK5
  • Packing:
        KTS-63N: 6 PCS/BOX; 36 PCS/CTN/22.7/24.6 KGS/2.37' (BLISTER CARD)
  • KTS-63N

  • One hand operation
  • KTS-63

  • Two hands operation traditional tools

  • KTS-63N
  • KTS-63NR: handle with rubber grip
  • KTS-63N-BS

  • point Ąż cut!
    back to top

    KTS-63

  • KTS-63
  • KTS-63-BS
  • line cut
  • Model No.: KTS-63
  • Replacement cutting blade: KTS-63-BS
  • Capacity: 6mm-63mm O.D. (2" I.D.)
  • Body material: die-cast aluminum alloy
  • Blade material: SK5
  • Packing:
        KTS-63: 1 PC/BOX; 20 PCS/CTN/21.5/25.2 KGS/2.5' (INNER BOX)
        KTS-63-BS: 100 PCS/CTN/18/19 KGS/1.2'
  • This KTS-63 has long handles for increased leverage when cutting large diameter plastic pipe up to 63mm outside diameter. This cutter has a hardened tool steel blade that is easily resharpened and replaced. KTS-63 has a five-step ratchet mechanism for good mechanical advantage and smooth, easy operation.

    back to top

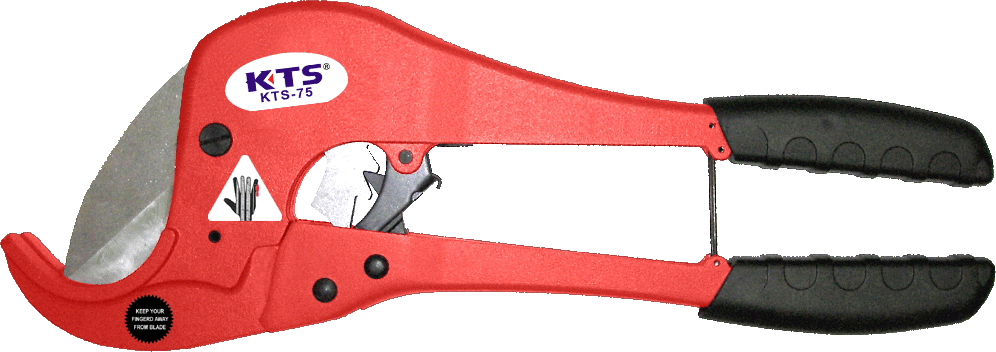

    KTS-75R

  • Model No.: KTS-75R
  • Replacement cutting blade: KTS-75R-BS
  • Capacity: 6mm-75mm O.D. (2 1/2" I.D.)
  • Body material: die-cast aluminum alloy
  • Blade material: SK5
  • Packing:
        KTS-75R:
        KTS-75R-BS:
  • The KTS-75R has long handles for increased leverage when cutting large diameter plastic pipe up to 75mm outside diameter. This cutter has a hardened tool steel blade that is easily resharpened and replace.

  • KTS-75R
  • back to top

    KTS-42N, KTS-42ND

    Pipe deburring tool
  • Model No.: KTS-42N, KTS-42ND
  • Replacement cutting blade:
        KTS-42N-BS (line cut),
        KTS-42ND-BS (point cut)
  • Capacity: 6mm-42mm O.D. (1 1/4" I.D.)
  • Body material: die-cast aluminum alloy
  • Blade material: SK5
  • Packing:
        KTS-42N: 10 PCS/BOX; 30 PCS/CTN/17.3/18.1 KGS/1.7' (BLISTER CARD)
        KTS-42ND: 10 PCS/BOX; 30 PCS/CTN/17.3/18.1 KGS/1.7' (BLISTER CARD)
  • KTS-42N
  • line cut
  • KTS-42ND
  • point Ąż cut!
    back to top

    KTS-42A

  • Model No.: KTS-42A
  • Replacement cutting blade: KTS-42A-BS
  • Capacity: 6mm-42mm O.D. (1 1/4" I.D.)
  • Body material: die-cast aluminum alloy
  • Blade material: SK5
  • Packing:
        KTS-42A: 15 PCS/BOX; 60 PCS/CTN/21.3/22.3 KGS/2.8' (BLISTER CARD)
  • KTS-KTS-42A
  • line cut
    back to top

    KTS-25A

  • Model No.: KTS-25A
  • Replacement cutting blade: KTS-25A-BS
  • Capacity: 6mm-25mm O.D. (3/4" I.D.)
  • Body material: die-cast aluminum alloy
  • Blade material: SK5
  • Packing:
        KTS-25A: 15 PCS/BOX; 60 PCS/CTN/18/20 KGS/2.6' (BLISTER CARD)
  • KTS-25A
  • line cut
